403XGN2-12 box-type fixed AC metal-enclosed switchgear (referred to as switchgear) is used for power with a rated voltage of 3.6~12kV, three-phase AC 50Hz, and a rated current of 630~3150A. The system is used for receiving and distributing electrical energy, especially for frequent operation. Its bus system is a single busbar, a derivable single bus with bypass and a double bus system. This switchgear meets the requirements of the national standard GB3906 "3-35kV AC metal-enclosed switchg
XGN2-12 box-type fixed AC metal-enclosed switchgear (referred to as switchgear) is used for power with a rated voltage of 3.6~12kV, three-phase AC 50Hz, and a rated current of 630~3150A. The system is used for receiving and distributing electrical energy, especially for frequent operation. Its bus system is a single busbar, a derivable single bus with bypass and a double bus system.
This switchgear meets the requirements of the national standard GB3906 "3-35kV AC metal-enclosed switchgear" and the international standard IEC298, and has a perfect anti-misoperation function.
2. Environmental conditions:
1. Ambient temperature: upper limit +40°C, lower limit -10°C°C;
2. The altitude should not exceed 1000m (more than 1000m can be negotiated with our companys technical department for production);
3. Relative humidity: the daily average is not more than 95%, and the monthly average is not more than 90%;
4. The seismic intensity does not exceed 8 degrees, and there is no fire, explosion danger, serious pollution, chemical corrosion and violent vibration.

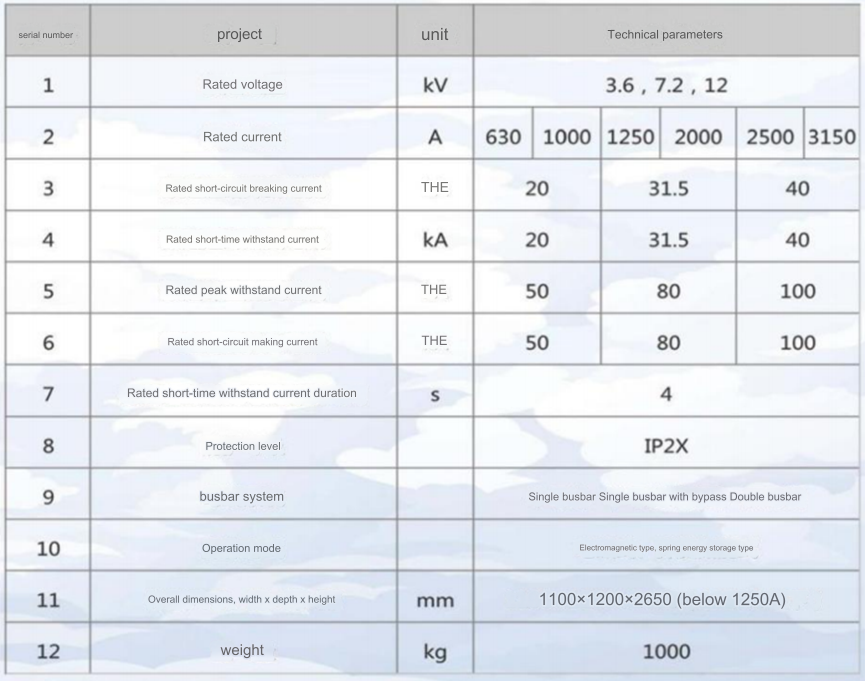

Three: technical parameters
