High-Voltage Mid-Mounted Switchgear

KYN28-12 indoor AC metal armored removable switchgear is a complete set of power distribution devices for 3-10 kV three-phase AC 50Hz single bus and single bus segmentation system. Mainly used in power plants, small and medium-sized generator power transmission, industrial and mining enterprises and institutions power distribution and power system of the secondary substation of the power system, power transmission and large high-voltage motor starting, etc., for control protection, monitoring, this switchgear meets the requirements of DL/T404-91, IEC298, GB3906 and other standards, with the ability to prevent load push-pull circuit breaker handcart, to prevent misuse of the circuit breaker, to prevent the grounding switch from closing and breaking when in the closed position, to prevent accidental entry into the live compartment, To prevent the interlock function of the grounding switch from being misconnected when live, a variety of main switch configuration schemes are available: VS1, ZN21, VB5 (VB5P) VD4, VEP, 3AH. EV12 and VPR vacuum circuit breakers are actually a kind of power distribution devices with superior performance.
2. Environmental conditions: 1. Ambient temperature: the maximum temperature is +40°C °C, and the minimum temperature is -15°C °C.

2. Environmental humidity: the daily average relative humidity ≤ 95%, and the monthly average relative humidity ≤ 90%.

3. Altitude: below 1000m.

4. Seismic resistance: the seismic intensity does not exceed 8 degrees,

5. The surrounding air should be a place where there is no frequent violent vibration. Severe design meets Class I requirements under severe conditions

6. It is not obviously polluted by corrosive combustible gas, water vapor, etc.

7. When used under normal environmental conditions that exceed the provisions of GB3906, the user and our company shall negotiate the above

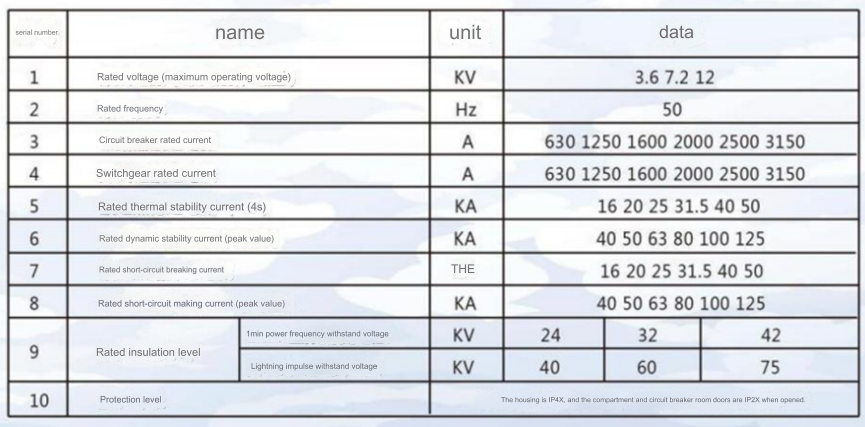

 three technical parameters
