GCS Series Withdrawable Switchgear

GCS series switchgear is suitable for industrial and mining enterprises, three-phase AC frequency 50Hz, rated voltage 380V to 600V, primary power distribution of power system and secondary distribution or control equipment with the previous motor as the main control object, also suitable for stations, docks, high-rise buildings, especially suitable for power plants, substations Petrochemical, metallurgy, machinery full control system and on-site control device, can be used as a factory and mining enterprise, It is used for power conversion, distribution and control of power and motor control centers of low-voltage power distribution systems such as high-rise buildings, as well as capacitance compensation. It can meet the special needs of computer interface in power plants with large single capacity, low-voltage power control centers and motor control centers in large-scale petrochemical and other industries. The product has the characteristics of strong segmentation, high red connection ability, good dynamic and thermal stability, flexible electrical scheme, convenient combination, novel structure, high protection level, etc., and can be used as a replacement product for low-voltage withdrawal switch cabinet.

GCS complies with IEC439-1 "Low Voltage Switchgear and Control Equipment", GB7251 "Low Voltage Switchgear", ZBK36001 "Low Voltage Withdrawable Switchgear" and other standards.
2. Environmental conditions: 1. The ambient air temperature is not higher than +40°C, not lower than -15°C, and the average temperature within 24 hours shall not be higher than +35°C

The capacity is degraded.

2. For indoor use, the altitude of the place of use shall not exceed 2000m.

3. The relative humidity of the surrounding air does not exceed 50% at a maximum temperature of +40°C, and a greater relative humidity is allowed at lower temperatures, such as:

+20°C is 90% and may take into account the possibility of occasional condensation due to temperature changes.

4. When the GCS is installed, the inclination with the vertical plane is not more than 5 degrees, and the whole group of cabinets is relatively flat (in line with GBJ232-B2 standard)

5. The GCS should be installed in a place where there is no severe vibration and shock, and where the electrical components are subjected to undue corrosion.

6. If the user has special requirements, he or she can coordinate with the company to solve them.

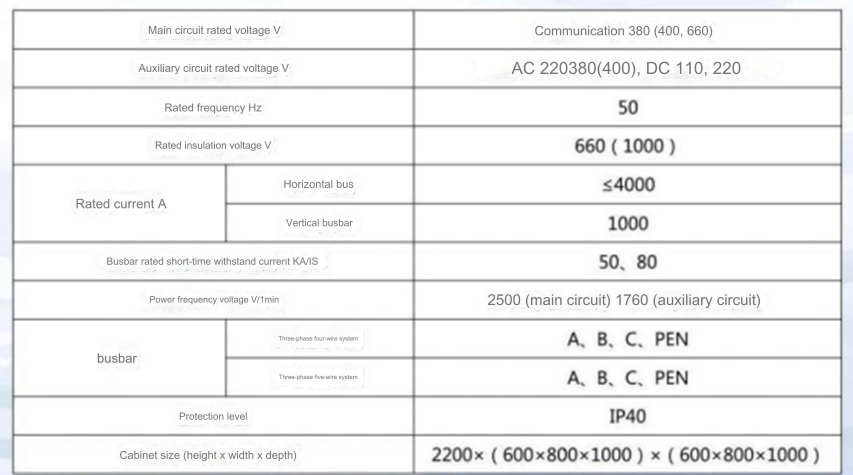

Three: technical parameters
